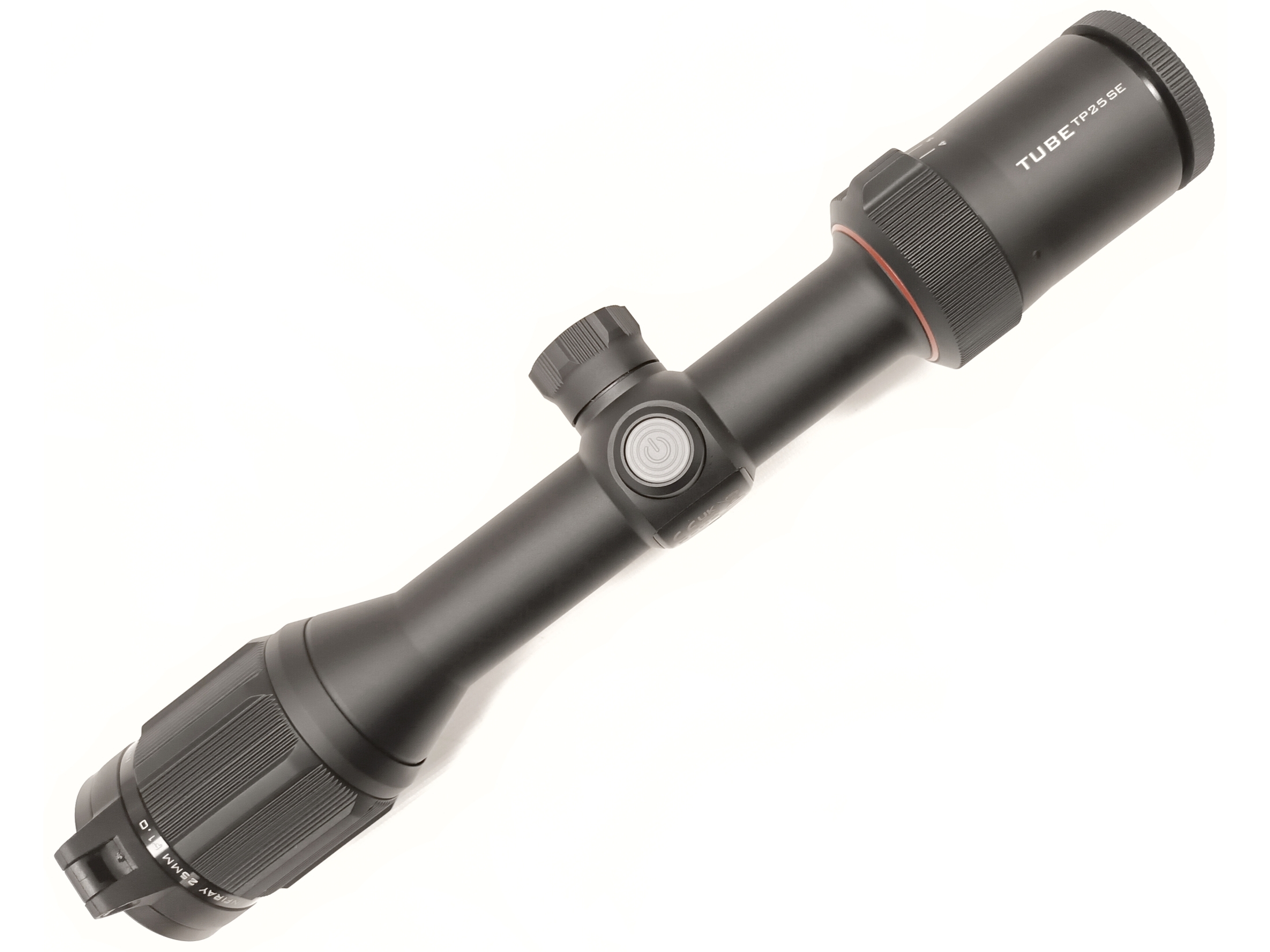

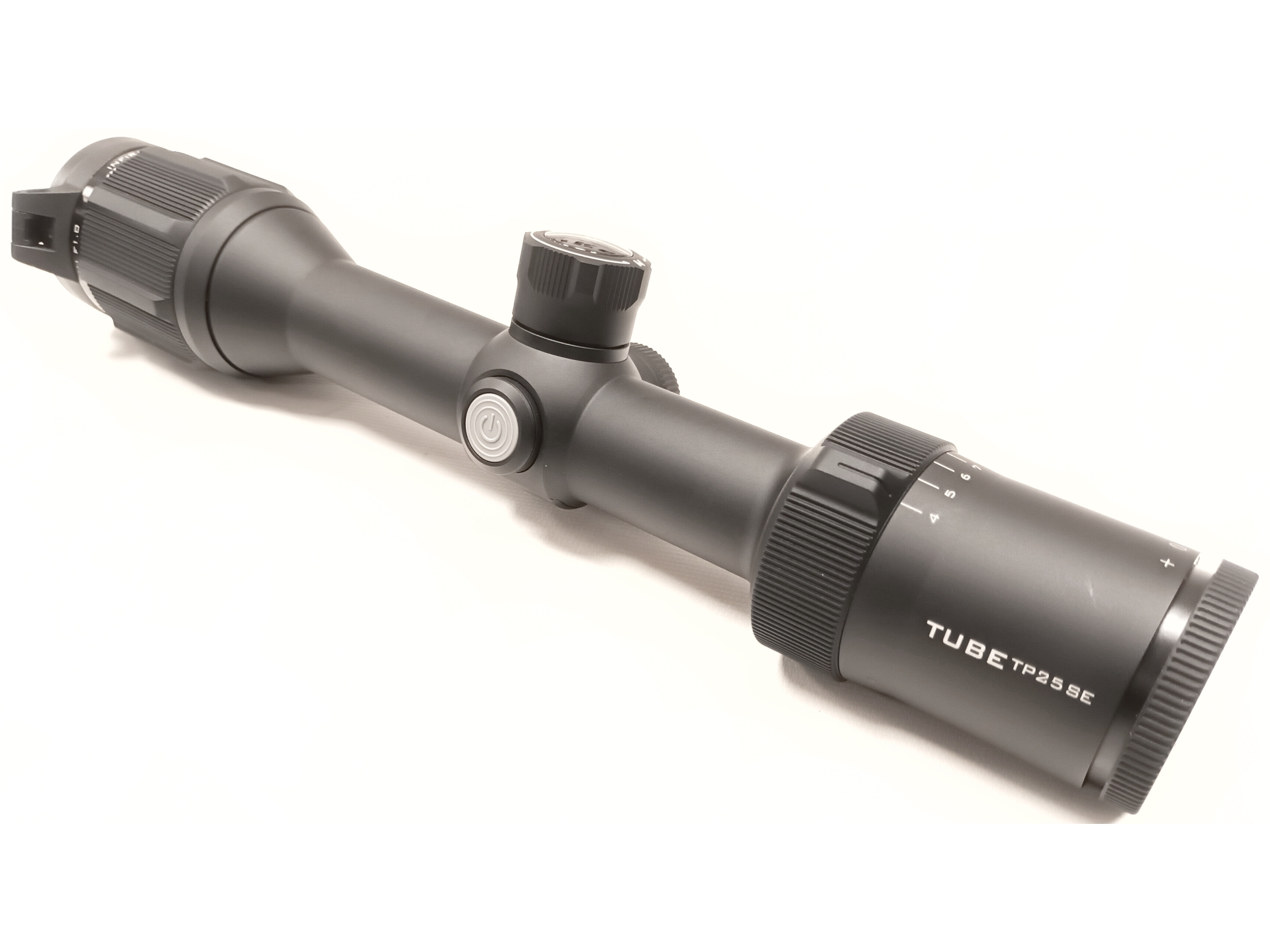

The InfiRay Tube TP25 SE thermal scope is both ultra compact, measuring approximately 310mm (approximately 350mm with rubber eye cup attached), and lightweight at only 750 grams. This makes it ideal for hunting setups where walking is required and in situations where your setup needs to be as compact as possible. Up to 9 hours of battery life per charge.

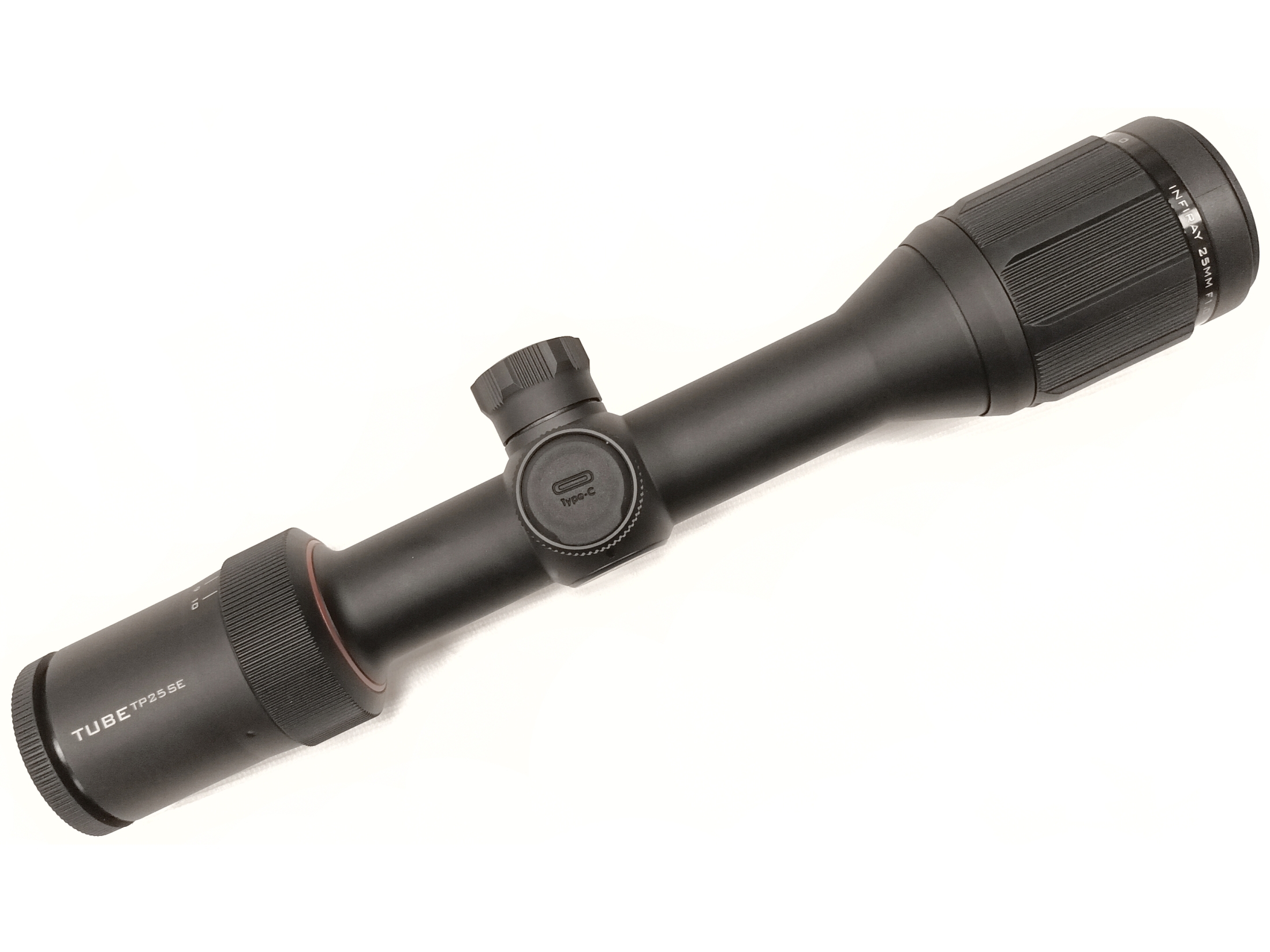

Much like a traditional scope, the 4-10x magnification adjustment is in the usual place, as are the front objective and rear eye focus adjustments. The right (normally windage) turret hides the USB-C charging port under a rubber cap, while the opposite side has the conveniently placed power button, and the top turret (normally elevation) now houses the advanced menu, setup options, and palette quick-swap function.
While the thermal sensor is capable of detecting up to 1300 metres, we would recommend the scope is primarly used on air rifles, rimfire rifles, or close range centrefire; as target identification becomes more challenging past 100 metres.
Supplied with: A robust fabric carry case, USB-C to USB charging cable with wall charging adaptor, weaver mounts, heated zeroing targets, lens cloth, and user instructions.
Specifications:
Detector Specifications:
Type: VOx
Resolution - Pixels: 256X192
Pixel Size - Micrometres: 12
NETD - mk (Less Than Or Equal To): 30
Refresh rate: 50Hz
Optical Specifications:
Objective Lens: 25mm
Field of View(H×V): 7.0x5.0 (Degrees)
Linear Field of View(H×V)(Metres @ 100m): 12.3x8.6
Optical Magnification: 4x
Digital Zoom: 1.0x to 2.5x
Eye Relief: 50mm
Exit pupil Diameter: 6mm
Diopter Adjustment: -5 to +4
Detection Range - Metres(Target siz: 1.7m x 0.5m - P(n)=99%): 1300
Display Specifications:
Type: AMOLED
Resolution - Pixels: 1536*1080
Battery Power Supply:
Battery Built-in 18650 battery-3350mAh
Max. operating Time(22 Celsius)* - Hours: 9
External Power Supply: 5V (Type C)
Physical Specifications:
Wi-Fi/APP: Support (InfiRay Outdoor)
Photo/Video Recorder: Support
MIC: Support
Bluetooth: Support
Memory Capacity: 32GB
IP Rating: IP67
Operating Tempeture (Celsius): -20 to +50
Weight: 750g
Dimensions: 310x70x70mm
Connections & Compatibilities:
Max. recoil power on rifled weapon (Eo) - Joules: 6000
Please note that the specifications are taken from the manufacturer's website and may not be current or correct.
